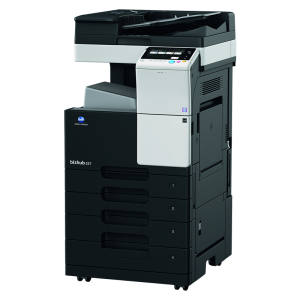

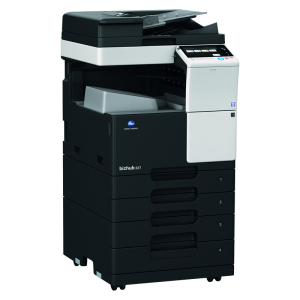

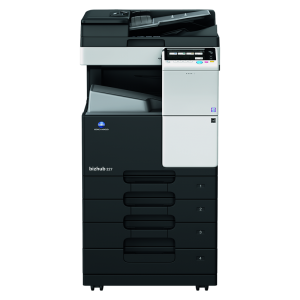

bizhub 227
Versatile, reliable and high-quality performance
- Speed A4/A3: 22/14 ppm in black & white
- Paper formats: A5-A3
- Cost effective A3 black & white multifunctional printer
- State-of-the-art mobile print technology
- Perfect for the small office
FUNCTIONALITIES
Carbon Copy print
Single page printing from multiple trays
Direct print
Driverless printing of PDF, XPS, DOCX, XLSX, PPTX, JPEG, TIFF, PS and PCL
Mobile Printing
Possibility to directly print documents from a mobile device
MyTab
Print driver customisation
Smart job queue
Unprintable jobs e.g. because of unavailable paper size (copy, print and fax) are bypassed by consecutive jobs
Toner save mode
Helps save toner by reducing toner consumption e.g. for draft prints
Blank page removal
Automatic deletion of blank pages e.g. when copying mixed simplex and duplex documents
Card shot
Prints copies of the front and back of the original on the same page, e.g. for passport and other ID
Custom function bar
Up to 2 x 7 copy functions can be freely selected for the main copy screen
Job preview
Illustrates selected copy functions on screen
Blank page removal
Automatic deletion of blank pages e.g. when scanning mixed simplex and duplex documents
Scan annotation
Stamping of e.g. date/time, filing number or custom text on scans for archiving purposes
Scan preview
Provides a real-time preview of scanned originals for checking before sending
Scan programs
Pre-setting of original, scan file and destination for regular scan jobs
Scan-to-Me/Home
Direct scan to own email address (Me) or SMB folder (Home) based on Active Directory information
Auto deletion
Automatic deletion of files stored in a user box after a predefined period
Box function
Storing of print, copy, scan and fax jobs for recall to send and print – for frequently printed documents like brochures, forms, pricelists etc.
Personal, Group and Public
User access definition for different boxes
Sharing
Copying of documents from user box to user box
Fax forwarding
Forwarding of incoming fax documents by email or to SMB folder instead of printing
IP-Fax
Sending of fax messages via network between Konica Minolta MFPs; supports colour as well as black & white
PC-Fax
Direct fax transmission from the PC
Shared address book
The MFP-internal address book can be shared with the PC fax client
Tray selection
Choice of input tray / print media and output tray for easy visibility of incoming faxes
Dynamic eco timer
Automatic analysis of working hours and adjustment of sleep mode timing
ECO meter
Counter for ECO related items e.g. power consumption
ECO print
Touch screen panel does not light up for printing out of sleep mode
ECO scan
Scanning of documents without warm-up of the print engine
Weekly timer
Sleep mode timer setting on day and date basis
Access rights
Function access rights can be granted on user level (up to 1,000 accounts on MFP)
Authentication
User access by password, user name + password, ID card or finger vein scanner
Data encryption
Encryption of data stored on hard disk and password protection for hard disk access
Network security
Support for SSL/TLS, HTTPS, 802.1x and IPsec.
Temporary data deletion
Copy, print, scan and fax job data are automatically deleted after job completion
SPECIFICATIONS
- System memory standard (MB) 2,048 MB (standard)
- System hard disc optional (GB) 250 GB (standard)
- Interfaces standard 10-Base-T/100-Base-T/1,000-Base-T Ethernet; USB 2.0; Wi-Fi 802.11b/g/n (optional)
- Network protocols TCP/IP (FTP; SMB; SMTP; WebDAV) (IPv4/IPv6)
- Frame types Ethernet 802.2; Ethernet 802.3; Ethernet II; Ethernet SNAP
- Automatic document feeder Up to 100 originals; A6-A3; 35-163 gsm RADF optional available
- Paper size A5-A3; A6S; Thick Paper X/Y size input range: Width:90-297 mm; Length: 139.7-431.8mm
- Printable paper weight (g/m²) 60-220 gsm
- Paper input capacity (sheets) Standard: 1,100 sheets
Max.: 3,600 sheets - Automatic duplexing A5-A3; 60-209 gsm
- Finishing modes (optional) Offset; group; sort; staple; punch; centre-fold; letter fold; booklet
- Output capacity (w. finisher) Max.: 3,300 sheets
- Output capacity (w/o finisher) Max.: 250 sheets
- Stapling Max.: 50 sheets or 48 sheets + 2 cover sheets (up to 209 gsm)
- Stapling output capacity Max.: 1,000 sheets
- Letter fold Up to 3 sheets
- Letter fold capacity Max.: 30 sheets (tray); unlimited
- Booklet Max.: 20 sheets or 19 sheets + 1 cover sheet (up to 209 gsm)
- Booklet output capacity Max.: 100 sheets (tray); unlimited
- Copy/print volume recommended (monthly) 10,000
- Copy/print volume max. (monthly) 19,000
If the maximum volume is reached within a period of one year, then a maintenance cycle must be performed - Toner lifetime Black 23,000 pages
- Imaging Unit lifetime Black 80,000 pages/600,000 pages (Drum/Developer)
- Power consumption 220-240 V / 50/60 Hz; Less than 1.5 kW (system)
- System dimensions (WxDxH, mm) 585 x 660 x 735 mm (Standard configuration of main body)
- System weight (kg) Approx. 56.5 kg
- Paper trays standard Tray 1: 500 sheets; A5-A4; 60-220 gsm
Tray 2: 500 sheets; A5-A3; 60-220 gsm
Manual Bypass: 100 sheets; A6-A3; custom sizes; 60-220 gsm - Paper trays optional Tray 3: 500 sheets; A5-A3; 60-220 gsm
Tray 3 + 4: 2 x 500 sheets; A5-A3; 60-220 gsm
Large Capacity Cabinet: 2,500 sheets; A4; 60-220 gsm
- Print resolution (dpi) 1,800 (equivalent) x 600 dpi
- Page description language PCL 6 (PCL 5 + XL 3.0); PostScript 3 (CPSI 3016); XPS
- Operating systems Windows VISTA (32/64)
Windows 7 (32/64)
Windows 8 (32/64)
Windows 8.1 (32/64)
Windows 10 (32/64)
Windows Server 2008/2008 R2 (32/64)
Windows Server 2012/2012 R2 (64)
Macintosh OS X 10.x
Unix; Linux; Citrix - Printer fonts 80 PCL Latin; 137 PostScript 3 Emulation Latin
- Print functions Direct print of PCL; PS; TIFF; XPS; PDF (v1.7); encrypted PDF files and OOXML (DOCX; XLSX; PPTX); mixmedia and mixplex; “Easy Set” job programming; overlay; watermark;copy protection; carbon copy print
- Mobile printing AirPrint (iOS); Mopria (Android); Google Cloud Print
(optional); Wi-Fi Direct (optional); Konica Minolta Print
Service (Android); PageScope Mobile (iOS); NFC Authentication and Pairing (Android)
- Max. storable documents Up to 3.000 documents or 10.000 pages
- Type of user boxes Public
Personal (with password or authentication)
Group (with authentication) - Type of system boxes Secure print
Encrypted PDF print
Fax receipt
Fax polling - User box functionality Reprint; combination
Download
Sending (e-mail/FTP/SMB and fax)
Copy box to box
- Security ISO15408/IEEE 2600.2 compliant (in evaluation);
IP filtering and port blocking;
SSL2; SSL3 and TSL1.0 network communication;
IPsec support; IEEE 802.1x support; user authentication;
Authentication log; secure print;
Hard disk overwrite (8 standard types);
Hard disk data encryption (AES 256);
Memory data auto deletion; Confidential fax receipt;
Print user data encryption - Accounting1 Up to 1,000 user accounts; Active Directory support
(user name + password + e-mail + smb folder)
User function access definition
Biometric authentication (finger vein scanner) optional
ID card authentication (ID card reader) optional - Software PageScope Net Care Device Manager
PageScope Data Administrator
PageScope Box Operator
PageScope Direct Print
Print Status Notifier
Driver Packaging Utility
Log Management Utility
Print From Anywhere, Anytime:
